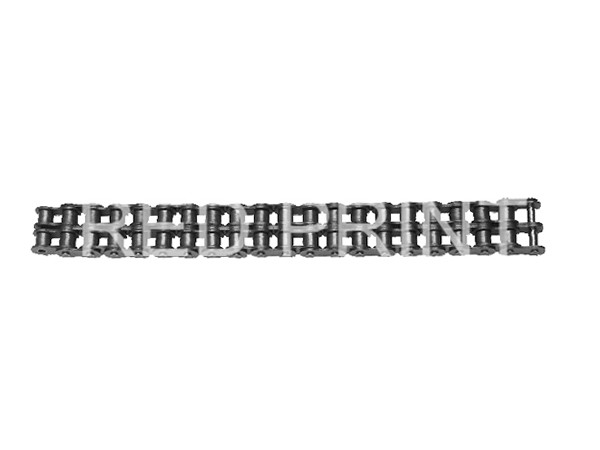

Short pitch transmission precision roller chains(A series)

ISO chain	ANSI chain			Roller	Width between inner plates	Bearing pin body diameter	Chain path depth	Inner plate depth	ransv- erse	Width over bearing pin	UItim- ate tensile stren- gth	Weight per meter
	No.	Pitch		diameter					pitch
No.		P		d1(min)	b1(man)	d2(max)	h1(min)	h2(max)	Pt	L(max)	Q(min)	q≈
		mm	in	mm	mm	mm	mm	mm	mm	mm	kN	kg/m
06C-1	Jan-35	9.525	3/8"	6.35	5.72	3.28	8.5	8.26	10.24	13.5	8.9	0.4
06C-2	Feb-35									23.8	16.9	0.8
06C-3	Mar-35									34	24.9	1.2
08A-1	Jan-40	12.7	1/2"	7.92	7.85	3.98	12.33	12.07	14.38	17.8	13.8	0.7
08A-2	Feb-40									32.3	27.6	1.4
08A-3	Mar-40									46.7	41.4	2.1
10A-1	Jan-50	15.875	5/8"	10.16	9.4	5.09	15.35	15.09	18.11	21.8	21.8	1
10A-2	Feb-50									39.9	43.6	2
10A-3	Mar-50									57.9	65.4	3
12A-1	Jan-60	19.05	3/4"	11.91	12.57	5.96	18.34	18.08	22.78	26.9	31.1	1.5
12A-2	Feb-60									49.8	62.3	3
12A-3	Mar-60									72.6	93.4	4.5
16A-1	Jan-80	25.4	1"	15.88	15.75	7.94	24.39	24.13	29.29	33.5	55.6	2.6
16A-2	Feb-80									62.7	111.2	5.2
16A-3	Mar-80									91.9	166.8	7.8
20A-1	100-1	31.75	1 1/4"	19.05	18.9	9.54	30.48	30.18	35.76	41.1	86.7	3.8
20A-2	100-2									77	173.5	7.6
20A-3	100-3									113	260.2	11.4
24A-1	120-1	38.1	1 1/2"	22.23	25.22	11.11	36.55	36.2	45.44	50.8	124.6	5.6
24A-2	120-2									96.3	249.1	11.2
24A-3	120-3									141.7	373.1	16.8
28A-1	140-1	44.45	1 3/4"	25.4	25.22	12.71	42.67	42.24	48.87	54.9	169	7.5
28A-2	140-2									103.6	338.1	15
28A-3	140-3									152.4	507.1	22.5
32A-1	160-1	50.8	2"	28.58	31.55	14.29	48.74	48.26	58.55	65.5	222.4	10.1
32A-2	160-2									124.2	444.8	20.2
32A-3	160-3									172.9	667.2	30.8
36A-1	180-1	57.15	2 1/4"	35.71	35.48	17.46	54.66	54.31	65.84	73.9	280.2	13.4
36A-2	180-2									140	560.5	29.2
36A-3	180-3									206	840.7	38.2
40A-1	200-1	63.5	2 1/2"	39.68	37.85	19.85	60.95	60.33	71.55	80.3	347	15.8
40A-2	200-2									151.9	693.9	32
40A-3	200-3									223.5	1040.9	48
48A-1	240-1	76.2	3"	47.63	47.35	23.81	73.13	72.39	87.83	95.5	500.4	22.6
48A-2	240-2									183.4	1000.8	46
48A-3	240-3									271.3	1501.3	68

Short pitch transmission precision roller chains(heavy.series)

ISO chain No.	ANSI chain	Pitch	Roller	Width betwe- en inner plates	Width betwe- en outer plates	Beari- ng pin body diameter	Chain path depth	Inner plate depth	Trans- verse pitch	Width over bearing pin	UItima- te tensile streng- th	Weight per meter
	No.		diame-ter									Weight per meter
		p	d1(max)	b1(min)	b2(man)	d2(max)	h1(min)	h2(max)	Pt	L(max)	Q(min)	q≈
		mm	mm	mm	mm	mm	mm	mm	mm	mm	kN	kg/m
12AH-1	60H-1	19.05	11.91	12.57	19.43	5.94	18.34	18.08	26.11	29.9	31.1	1.8
12AH-2	60H-2									56	62.3	3.6
12AH-3	60H-3									82.1	93.4	5.4
16AH-1	80H-1	25.4	15.88	15.75	24.28	7.92	24.39	24.13	32.59	36.6	55.6	3
16AH-2	80H-2									69.2	111.2	6
16AH-3	80H-3									101.8	166.8	9
20AH-1	100H-1	31.75	19.05	18.9	29.1	9.53	30.48	30.18	39.09	44.1	86.7	4.2
20AH-2	100H-2									83.2	173.5	8.4
20AH-3	100H-3									122.3	260.2	12.6
24AH-1	120H-1	38.1	22.23	25.22	37.18	11.1	36.55	36.2	48.87	53.8	124.6	6
24AH-2	120H-2									102.7	249.1	12
24AH-3	120H-3									151.5	373.7	18
28AH-1	140H-1	44.45	25.4	25.22	38.86	12.7	42.67	42.24	48.87	54.9	169	8.1
28AH-2	140H-2									103.6	338.1	16.2
28AH-3	140H-3									152.4	507.1	24.3
32AH-1	160H-1	50.8	28.58	31.55	46.88	14.27	48.74	48.26	61.9	68.5	222.4	10.7
32AH-2	160H-2									130.4	444.8	21.4
32AH-3	160H-3									192.3	667.2	32.1
40AH-1	200H-2	63.5	39.68	37.85	58.29	19.84	60.93	60.33	78.31	90.7	347	20
40AH-2	200H-2									169	693.9	40
40AH-3	200H-3									250.3	1040.9	60
48AH-1	240H-1	76.2	47.63	47.35	74.54	23.8	73.13	72.39	101.22	111.1	500.3	31
48AH-2	240H-2									212.3	1000.6	62
48AH-3	240H-3									313.5	1500.9	93

Short pitch transmission precision roller chains(B series)

ISO chain No.	Pitch		Roller	Width between inner plates	Bearing pin body diameter	Chain path depth	Inner plate depth	Transv- erse pitch	Width over bearing pin	UItima- te tensile strength	Weight per meter
			diameter								Weight per meter
			d1(max)	b1(min)	d2(max)	h1(min)	h2(max)	Pt	L(max)	Q(min)	q≈
	p										q≈
	mm	in	mm	mm	mm	mm	mm	mm	mm	kN	kg/m
06B-1	9.525	3/8"	6.35	5.72	3.28	8.52	8.26	10.24	13.5	8.9	0.4
06B-2									23.8	16.9	0.8
06B-3									34	24.9	1.2
08B-1	12.7	1/2"	8.51	7.75	4.45	12.07	11.81	13.92	17	17.8	0.7
08B-2									31	31.1	1.4
08B-3									44.9	44.5	2.1
10B-1	15.875	5/8"	10.16	9.65	5.08	14.99	14.73	16.59	19.6	22.2	1
10B-2									36.2	44.5	1.9
10B-3									52.8	66.7	2.8
12B-1	19.05	3/4"	12.07	11.68	5.72	16.39	16.13	19.46	22.7	28.9	1.2
12B-2									42.2	57.8	2.4
12B-3									61.7	86.7	3.5
16B-1	25.4	1"	15.88	17.02	8.28	21.34	21.08	31.88	36.1	60	2.7
16B-2									68	106	5.4
16B-3									99.9	160	8.2
20B-1	31.75	1 1/4”	19.05	19.56	10.19	26.68	26.42	36.45	43.2	95	3.7
20B-2									79.7	170	7.2
20B-3									116.1	250	10.9
24A-1	38.1	1 1/2”	25.4	25.4	14.63	33.73	33.4	48.36	53.4	160	7.1
24A-2									101.8	280	13.4
24A-3									150.2	425	20.1
28B-1	44.45	1 3/4”	27.94	30.99	15.9	37.46	37.08	59.56	65.1	200	8.5
28B-2									124.7	360	16.6
28B-3									184.3	530	24.9
32B-1	50.8	2"	29.21	30.99	17.81	42.72	42.29	58.55	67.4	250	10.3
32B-2									126	450	21
32B-3									184.5	670	31.6
40B-1	63.5	2 1/2”	39.37	38.1	22.89	53.49	52.96	72.29	82.6	355	16.4
40B-2									154.9	630	32
40B-3									227.2	950	48.1
48B-1	76.2	3"	48.26	45.72	29.24	64.52	63.88	91.21	99.1	560	25
48B-2									190.4	1000	50
48B-3									281.6	1500	75
56B-1	88.9	3 1/2”	53.98	53.34	34.32	78.64	77.85	106.6	114.6	850	35
56B-2									221.2	1600	70

Agricultrue and timber chains for conveyor

Chain No.	Pitch	Width between inner plates	Roller	Bearing pin body diameter	plate depth	UItimate tensile strength	Weight per meter
	Pitch	Width between inner plates	diameter	Bearing pin body diameter	plate depth	UItimate tensile strength	Weight per meter
	p	b1(min)	d1(max)	d2(max)	h2(max)	Q(min)	q≈
	mm	mm	mm	mm	mm	kN	kg/m
81X	66.27	27	23	10.97	29	10.9	3.9
81XH	66.27	27	23	11.1	31.8	15.4	5
81XHH	66.27	27	23	11.1	31.8	15.4	6.5
CA550	41.4	20.2	16.66	7.137	19	5.1	2
CA555	41.4	12.7	16.66	7.137	19	5.1	2.8
CA620	42.01	25	17.68	7.137	19	5.1	3.8

Short pitch precision roller chain conveyor attachments

ISO chain No.	ANSI chain	Pitch	Roller	Width between inner plates	Beari- ng pin body diame- ter	Width over beari- ng pin		Inner plate depth	Plate	Transv- erse pitch	UItim- ate tensile stren- gth	Weig- ht per meter
	No.	Pitch	diamet- er	Width between inner plates	Beari- ng pin body diame- ter	Width over beari- ng pin		Inner plate depth	thickn- ess	Transv- erse pitch	UItim- ate tensile stren- gth	Weig- ht per meter
		p	d1(max)	b1(min)	d2(max)	L(max)	Lc(max)	h2(max)	t(max)	Pt	Q(min)	q≈
		mm	mm	mm	mm	mm	mm	mm	mm	mm	kN	kg/m
C08A-1	C40-1	12.7	7.95	7.85	3.96	16.6	18.8	12	1.5	14.38	14.1	0.73
C08A-2	C40-2					31	33.2				28.2	1.43
C08A-3	C40-3					45.4	47.6				42.3	2.14
C10A-1	C50-1	15.875	10.16	9.4	5.08	20.7	23.3	15.09	2.03	18.11	22.2	1.23
C10A-2	C50-2					38.9	41.4				44.4	2.42
C10A-3	C50-3					57	59.5				66.6	3.62
C12A-1	C60-1	19.05	11.91	12.57	5.94	25.9	28.3	18	2.42	22.78	31.8	1.81
C12A-2	C60-2					48.8	51.1				63.6	3.58
C12A-3	C60-3					71.5	73.9				95.4	5.36
C16A-1	C80-1	25.4	15.88	15.75	7.92	32.7	44.7	24	3.25	29.29	56.7	3.09
C16A-2	C80-2					62.7	65.8				113.4	6.12
C16A-3	C80-3					91.7	95.1				170.1	9.1
C20A-1	C100-1	31.75	19.05	18.9	9.53	40.4	44.7	30	4	35.76	88.5	4.56
C20A-2	C100-2					76.4	80.5				177	9.08
C20A-3	C100-3					112.2	116.3				265.5	13.6
C24A-1	C120-1	38.1	22.23	25.22	11.1	50.3	54.3	35.7	4.8	45.44	127	6.86
C24A-2	C120-2					95.8	99.7				254	13.6
C24A-3	C120-3					141.4	145.2				381	20.43
C28A-1	C140-1	44.45	25.4	25.22	12.7	54.4	59	41	5.6	48.87	172.4	8.49
C28A-2	C140-2					103.3	107.9				344.8	16.86
C28A-3	C140-3					152.2	156.8				517.2	25.23
C32A-1	C160-1	50.8	28.58	31.55	14.27	64.8	69.6	47.8	6.4	58.55	226.8	11.5
C32A-2	C160-2					123.3	128.1				453.6	22.9
C32A-3	C160-3					181.8	186.6				680.4	34.19

Double pitch roller chains for transmission and conveyors

ISO chain No.	ANSI chain	Pitch	Roller		Width betwe- en inner plates	Bear- ing pin body diame- ter	Chain path depth	Inner plate depth	Width over bear- ing pin	Width over conn- ecting pin	Bend plate	UItim- ate tensile stren- gth	Weight per meter
	No.		diameter								dimen- sions
		p	d1(max)	d7(max)	b1(min)	d2(max)	h1(min)	h2(max)	b4 (max)	bs(max)	L1(min)	Q(min)	q≈
		mm	mm		mm	mm	mm	mm	mm	mm	mm	kN	kg/m
DOUBLE PITCH TRANSMISSION CHAINS（d7:LARGE ROLLER DIAMETER）
208A	2040	25.4	7.95	15.88	7.85	3.98	12.33	12.07	17.8	21.7	6.9	13.8	0.42
208B			8.91		7.75	4.45	12.07	11.81	17	20.9		18	0.45
210A	2050	31.75	10.16	19.05	9.4	5.09	15.35	15.09	21.8	25.9	8.4	21.8	0.73
210B			10.16		9.65	5.08	14.99	14.73	19.6	23.7		22.4	0.65
212A	2060	38.1	11.91	22.23	12.57	5.96	18.34	18.08	26.9	31.5	9.9	31.1	1.02
212B			12.07		11.68	5.72	16.39	16.13	22.7	27.3		29	0.76
216A	2080	50.8	15.88	28.58	15.75	7.94	24.39	24.13	33.5	38.9	13	55.6	1.7
216B			15.88		17.02	8.28	21.34	21.08	36.1	41.5		60	1.75
220A	2100	63.5	19.05	39.67	18.9	9.54	30.48	30.18	41.1	47.2	16	86.7	2.55
220B			19.05		19.56	10.19	26.68	26.42	43.2	49.3		95	1.95
224A	2120	76.2	22.23	44.45	25.22	11.11	36.55	36.2	50.8	57.4	19.1	124.6	3.5
224B			25.4		25.4	14.63	33.73	33.4	53.4	60		160
228B		88.9	27.94		30.99	15.9	37.46	37.08	65.1	72.5	21.3	200
232B		101.6	29.21		30.99	17.81	42.72	42.29	67.4	75.3	24.4	250
DOUBLE PITCH CONVEYOR CHAINS（L：LARGE ROLLER）
C208B		25.4	8.51		7.75	4.45	12.33	11.81	17	20.9	6.9	18	0.55
C208BL			15.88										0.89
C208A	C2040	25.4	7.95		7.85	3.98	12.33	12.07	17.8	21.7	6.9	13.8	0.5
C208AL	C2042		15.88										0.84
C210A	C2050	31.75	10.16		9.4	5.09	15.35	15.09	21.8	25.9	8.4	21.8	0.78
C210AL	C2052		19.05										1.27
C212A	C2060	38.1	11.91		12.57	5.96	18.34	18.08	26.9	31.5	9.9	31.1	1.12
C212AL	C2062		22.23										1.61
C216A	C2080	50.8	15.88		15.75	7.94	24.39	24.13	33.5	38.9	13	55.6	2.08
C216AL	C2082		28.58										3.12
C220A	C2100	63.5	19.05		18.9	9.54	30.48	30.18	41.1	47.2	16	86.7	3.01
C220AL	C2102		39.67										4.83
C224A	C2120	76.2	22.23		25.22	11.11	36.55	36.2	50.8	57.4	19.1	124.6
C224AL	C2122		44.45

Double pitch precision roller chain conveyor attachments

ISO chain No.	ANSI chain	Pitch	Roller	Width between inner plates	Plate thickness	Attachment dimensions							UItimate tensile strength
	No.		diameter

		p	d1(max)	b1(min)	F(max)	D4（min）	f	g	h6	h8	d2	b8	Q(min)
		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kN
C208B		25.4	8.51	7.75	1.65	4.5	25.4	12.7	9.1	13.5	4.45	12.7	17.8
C208BL			15.88
C280A	C2040	25.4	7.95	7.85	1.52	3.4	25.4	9.5	9.1	13.5	3.96	9.5	13.8
C208AL	C2042		15.88
C210A	C2050	31.75	10.16	9.4	2.03	5.5	31.8	11.9	11.1	15.9	5.08	11.9	21.8
C210AL	C2052		19.05
C212A	C2060	38.1	11.91	12.57	2.39	5.5	42.9	14.3	14.7	19.1	5.94	14.3	31.1
C212AL	C2062		22.23
C212AH	C2060H		11.91		3.18
C212ALH	C2062H		22.23
C216A	C2080	50.8	15.88	15.75	3.18	6.6	55.6	19.1	19.1	25.4	7.92	19.1	55.6
C216AL	C2082		28.58
C216AH	C2080H		15.88		3.96
C216ALH	C2082H		28.58
C220A	C2100	63.5	19.05	18.9	3.96	9.2	66.6	23.8	23.4	31.8	9.53	23.8	86.7
C220AL	C2102		39.67
C220AH	C2100H		19.05		4.75
C220ALH	C2102H		39.67
C224A	C2120	76.2	22.23	25.22	4.75	11	79.3	28.6	27.8	37.3	11.1	28.6	124.6
C224AL	C2122		44.45
C224AH	C2120H		22.23		5.56
C224ALH	C2122H		44.45

Elevat and convey chains of building materials industry

Chain No.	Pitch	Roller	Bearing pin body diameter	Width over bearing pin	Width between inner plates	Plate	plate depth	Attachment
		diameter				thickness		sizes

	p	d1(max)	d2(max)	b3 (max)	b1(min)	t	h	c
	mm
Chains for conveyor of type FU machine
FU150-101.6	101.6	26.5	11.5	70	27	6	35	42.5
FU200-152.4	152.4	35	15.5	90	36.5	8	50	65
FU270-152.4	152.4	36	15.5	90	36.5	8	50	85
FU350-200	200	41	19.1	120	51.8	10	60	129
FU410-200	200	41	19.1	120	51.8	10	60	148
FU500-300	300	63.5	31.75	141	67.4	12	90	180
FU600-300	300	48.5	22.2	126	57.4	10	75	215
Chains for conveyor of type NE machine
NE15-101.6	101.6	26.5	11.5	70	27	6	35	35
NE30-152.4	152.4	35	15.5	90	36.5	8	50	50
NE50-152.4	152.4	35	15.5	90	36.5	8	50	110
NE100-200	200	42	19.1	120	51.8	10	60	125
NE150-200	200	41	19.1	120	51.8	10	60	125
NE200-250	250	63.5	31.75	146	67.4	12	90	150
NE300-250	250	63.5	31.75	146	67.4	12	90	150
Chains for elevate of type DS machine
DS400-152.4	152.4	35	15.5	90	36.5	8	50	50
DS640-250	250	48.5	19.1	120	57.6	10	75	75

Motorcycle chains

ISO chain No.	JIS chain	Pitch	Roller (bush)	Width betwe- en inner plates	Bear- ing pin body diame- ter	Width over bear- ing pin	Width over connec- ting pin	Inner plate depth	Plate	Transv- erse pitch	UItim- ate tensile stren- gth	Weight per meter
	No.	Pitch	diame- ter	Width betwe- en inner plates	Bear- ing pin body diame- ter	Width over bear- ing pin	Width over connec- ting pin	Inner plate depth	thick- ness	Transv- erse pitch	UItim- ate tensile stren- gth	Weight per meter
		p	d1(max)	b1(min)	d2(max)	b4 (max)	bs(max)	h2(max)	c(max)	Pt	Q(min)	q≈
		mm									kN	kg/m

04MA	25H	6.35	3.3	3.1	2.3	9.1	10.6	6	1		4.5	0.17
05MA	219	7.774	4.59	4.68	3	12	13.6	7.5	1.2	-	6.6	0.27
05MB		8	4.77	5.72	3.3	13.9		7.5	1.4		8.9	0.39
05MC	270	8.5	5	4.75	3.3	13.3	-	8.6	1.6		9.8	0.43
06MA	T3F	9.525	6	9.5	4.5	18.6		9.3	1.8		11.8	0.61

ROLLER CHAIN

83		12.7	7.75	4.88	4	12.9	14.4	10.3	1.4		11.6	0.55
84			7.75	4.88		14.8	16.3	11.2	1.7	-	15.6	0.58
08MA	420		7.77	6.25		16	17.6	12.1	1.5		16	0.58
08MB	428		8.51	7.75	4.4	17	19.5	12.5	1.5		17.8	0.66
08MC	428H					19.3	21.8		2		20.6	0.79
08MB-2	428-2					31.2	33.6		1.5	14.38	31.1	1.32
10MA	520	15.875	10.16	6.25	5.2	19	21.5	15.3	2		26.5	1.05
10MB	52M530	15.875	10.16	9.4	5.2	22	24.5	15.3	2	-	26.5	1.06
12MA	630	19.05	11.91	9.4	5.9	24	27	18.6	2.4		35	1.55

Detail
