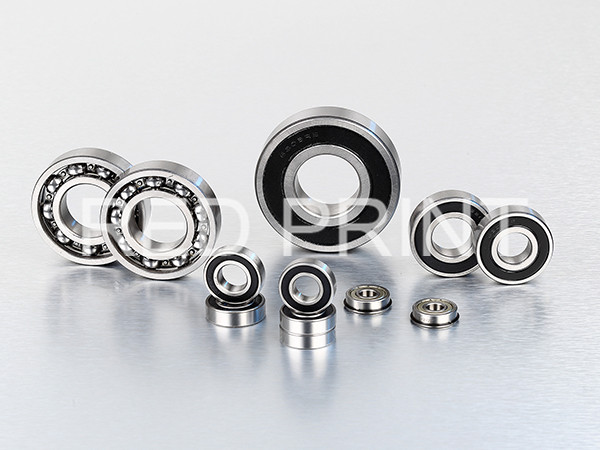

Because of their versatility, single-row deep-groove ball bearings are the most popular of the antifriction bearing types. They are available in a broad range of sizes, from miniature ball bearings with outside diameter of less than 9mm to extra-large bearings that exceed 1,500mm in diameter. Small and mid. size bearings are also available in a variety of shield, seal and snap ring arrangements. Big ones normally are fitted with solid brass or steel cages.
Miniature bearings: Inner diameter 2mm-10mm, 3/32"-1/2" and flanged types
600 series: 603~609
620 series: 623~629
630 series: 634~639
670 series/MR series: 673~678 / MR63~MR148
680 series: 683~689
690 series: 693~699
Deep groove ball bearings:
6000 series: 6000-6015
6200 series: 6200-6215
6300 series: 6300-6315
6400 series: 6403-6415
Extra-thin section ball bearings:
6700 series: 6700-6707
6800 series: 6800-6818
6900 series: 6900-6920
Light-ring ball bearings:
16000 series: 16000-16028
Heavy-ring ball bearings:
62000 series: 62000~62004
62200 series: 62200~62203
62300 series:
63000 series: 63000~63004
63200 series: 63200~63203
63800 series: 63800~63803
Inch series:
R series:
RLS series:
RMS series:
1600 series:
Non-standard ball bearings:

600 series
Bearing No.	d	D	B1	B	rmin	Df	Bf1	Bf
60/1.5	1.5	6	3	2.5	0.15	7.5	0.8	0.6
602	2	7	3.5	2.8	0.15	8.5	0.9	0.7
60/2.5	2.5	8	4	2.8	0.15	9.5	0.9	0.7
603	3	9	5	3	0.15	10.5	1	0.7
604	4	12	4	4	0.15	13.5	1	1
605	5	14	5	5	0.2	16	1	1
606	6	17	6	6	0.2	19	1.2	1.2
607	7	19	6	6	0.3	22	1.5	1.5
608	8	22	7	7	0.3	25	1.5	1.5
609	9	24	7	7	0.3	27	1.5	1.5
620 series
Bearing No.	d	D	B1	B	rmin	Df	Bf1	Bf
623	3	10	4	4	0.15	11.5	1	1
624	4	13	5	5	0.2	15	1	1
625	5	16	5	5	0.3	18	1	1
626	6	19	6	6	0.3	22	1.5	1.5
627	7	22	7	7	0.3	25	1.5	1.5
628	8	24	8	8	0.3
629	9	26	8	8	0.3
630 series
Bearing No.	d	D	B1	B	rmin	Df	Bf1	Bf
633	3	13	5	5	0.3	15	1	1
634	4	16	5	5	0.3	18	1	1
635	5	19	6	6	0.3	22	1.5	1.5
636	6	22	7	7	0.3	25	1.5	1.5
637	7	26	9	9	0.3	29	2	2
638	8	28	9	9	0.3
639	9	30	10	10	0.6
MR series
Bearing No.	d	D	B1	B	rmin	Df	Bf1	Bf
MR31	1	3		1.5	0.05			0.4
MR4/1.2	1.2	4	2.5	1.8	0.1	4.8		0.6
MR52	2	5	2.5	2	0.1	6.2	0.6	0.6
MR62	2	6	2.5	2.5	0.15	7.2	0.6	0.6
MR63	3	6	2.5	2	0.1	7.2	0.6
MR72	2	7	3	2.5	0.15	8.2	0.6	0.6
MR74	4	7	2.5	2	0.1	8.2	0.6	0.6
MR8/2.5	2.5	8		2.5	0.2	9.2		0.6
MR83	3	8	3	2.5	0.15	9.2		0.6
MR84	4	8	3	2	0.15	9.2	0.6	0.6
MR85	5	8	2.5	2	0.1	9.2	0.6	0.6
MR93	3	9	4	2.5	0.2	10.2	0.8	0.6
MR95	5	9	3	2.5	0.15	10.2	0.6	0.6
MR104	4	10	4	3	0.2	11.2	0.8	0.6
MR105	5	10	4	3	0.15	11.2	0.8	0.6
MR106	6	10	3	2.5	0.15	11.2	0.6	0.6
MR115	5	11	4	3	0.15	12.6	0.8	0.6
MR117	7	11	3	2.5	0.15	12.2	0.6
MR126	6	12	4	3	0.2	13.6	0.8	0.6
MR128	8	12	3.5	2.5	0.15	13.6	0.8	0.6
MR137	7	13	4	3	0.2	14.6	0.8	0.6
MR148	8	14	4	3.5	0.2	15.6	0.8	0.8
680 series
Bearing No.	d	D	B1	B	rmin	Df	Bf1	Bf
681	1	3		1	0.05	3.8		0.3
68/1.5	1.5	4	2	1.2	0.05	5		0.4
682	2	5	2.3	1.5	0.08	6.1	0.6	0.5
68/2.5	2.5	6	2.6	1.8	0.08	7.1	0.8	0.5
683	3	7	3	2	0.1	8.1	0.8	0.5
684	4	9	4	2.5	0.1	10.3	1	0.6
685	5	11	5	3	0.15	12.5	1	0.8
686	6	13	5	3.5	0.15	15	1.1	1
687	7	14	5	3.5	0.15	16	1.1	1
688	8	16	5	4	0.2	18	1.1	1
689	9	17	5	4	0.2	19	1.1	1
690 series
691	1	4		1.6	0.1	5		0.5
69/1.5	1.5	5	2.6	2	0.15	6.5	0.8	0.6
692	2	6	3	2.3	0.15	7.5	0.8	0.6
69/2.5	2.5	7	3.5	2.5	0.15	8.5	0.9	0.7
693	3	8	4	3	0.15	9.5	0.9	0.7
694	4	11	4	4	0.15	12.5	1	1
695	5	13	4	4	0.2	15	1	1
696	6	15	5	5	0.2	17	1.2	1.2
697	7	17	5	5	0.3	19	1.2	1.2
698	8	19	6	6	0.3	22	1.5	1.5
699	9	20	6	6	0.3	23	1.5	1.5
6000 series
Bearing No.	d	D	B	rmin
6000	10	26	8	0.3
6001	12	28	8	0.3
6002	15	32	9	0.3
6003	17	35	10	0.3
6004	20	42	12	0.6
6005	25	47	12	0.6
6006	30	55	13	1
6007	35	62	14	1
6008	40	68	15	1
6009	45	75	16	1
6010	50	80	16	1
6011	55	90	18	1.1
6012	60	95	18	1.1
6013	65	100	18	1.1
6014	70	110	20	1.1
6015	75	115	20	1.1
6200 series
6200	10	30	9	0.6
6201	12	32	10	0.6
6202	15	35	11	0.6
6203	17	40	12	0.6
6204	20	47	14	1
6205	25	52	15	1
6206	30	62	16	1.1
6207	35	72	17	1.1
6208	40	80	18	1.1
6209	45	85	19	1.1
6210	50	90	20	1.1
6211	55	100	21	1.5
6212	60	110	22	1.5
6213	65	120	23	1.5
6214	70	125	24	1.5
6215	75	130	25	1.5
6300 series
6300	10	35	11	0.6
6301	12	37	12	1
6302	15	42	13	1
6303	17	47	14	1
6304	20	52	15	1.1
6305	25	62	17	1.1
6306	30	72	19	1.1
6307	35	80	21	1.5
6308	40	90	23	1.5
6309	45	100	25	1.5
6310	50	110	27	2
6311	55	120	29	2
6312	60	130	31	2.1
6313	65	140	33	2.1
6314	70	150	35	2.1
6315	75	160	37	2.1
6400 series
6403	17	62	17	1.1
6404	20	72	19	1.1
6405	25	80	21	1.5
6406	30	90	23	1.5
6407	35	100	25	1.5
6408	40	110	27	2
6409	45	120	29	2
6410	50	130	31	2.1
6411	55	140	33	2.1
6412	60	150	35	2.1
6413	65	160	37	2.1
6414	70	180	42	3
6415	75	190	45	3
6700 series
Bearing No.	d	D	B	rmin
6700	10	15	4	0.15
6701	12	18	4	0.2
6702	15	21	4	0.2
6703	17	23	4	0.2
6704	20	27	4	0.2
6705	25	32	4	0.2
6706	30	37	4	0.2
6707	35	44	5	0.3
6708	40	50	6	0.3
6709	45	55	6	0.3
6800 series
6800	10	19	5	0.3
6801	12	21	5	0.3
6802	15	24	5	0.3
6803	17	26	5	0.3
6804	20	32	7	0.3
6805	25	37	7	0.3
6806	30	42	7	0.3
6807	35	47	7	0.3
6808	40	52	7	0.3
6809	45	58	7	0.3
6810	50	65	7	0.3
6811	55	72	9	0.3
6812	60	78	10	0.3
6813	65	85	10	0.6
6814	70	90	10	0.6
6815	75	95	10	0.6
6816	80	100	10	0.6
6900 series
6900	10	22	6	0.3
6901	12	24	6	0.3
6902	15	28	7	0.3
6903	17	30	7	0.3
6904	20	37	9	0.3
6905	25	42	9	0.3
6906	30	47	9	0.3
6907	35	55	10	0.6
6908	40	62	12	0.6
6909	45	68	12	0.6
6910	50	72	12	0.6
6911	55	80	13	1
6912	60	85	13	1
6913	65	90	13	1
6914	70	100	16	1
6915	75	105	16	1
6916	80	110	16	1
16000 series
Rearing No.	d	D	B	rmin
16001	12	28	7	0.3
16002	15	32	8	0.3
16003	17	35	8	0.3
16004	20	42	8	0.3
16005	25	47	8	0.3
16006	30	55	9	0.3
16007	35	62	9	0.3
16008	40	68	9	0.3
16009	45	75	10	0.6
16010	50	80	10	0.6
16011	55	90	11	0.6
16012	60	95	11	0.6
16013	65	100	11	0.6
16014	70	110	13	0.6
16015	75	115	13	0.6
Heavy-ring ball bearings
Bearing No.	d	D	B
60/22	22	44	12
60/28	28	52	12
60/32	32	58	13
62/22	22	50	14
62/28	28	58	16
62/32	32	65	17
63/22	22	56	16
63/28	28	68	18
63/32	32	75	20
69/28	28	45	9
62200	10	30	14
62201	12	32	14
62202	15	35	14
62203	17	40	16
62204	20	47	18
62205	25	52	18
62206	30	62	20
62207	35	72	23
62208	40	80	23
62209	45	85	23
62210	50	90	23
62300	10	35	17
62301	12	37	17
62302	15	42	17
62303	17	47	19
62304	20	52	21
62305	25	62	24
62306	30	72	27
62307	35	80	31
62308	40	90	33
62309	45	100	36
62310	50	110	40
63000	10	26	12
63001	12	28	12
63002	15	32	13
63003	17	35	14
63004	20	42	16
63005	25	47	16
63006	30	55	19
63007	35	62	20
63008	40	68	21
63009	45	75	23
63010	50	80	23
R series
Bearing NO.	d	D	B1	B	rmin	Df	Bf1	Bf
R09	1.016	3.175	2.38	1.191	0.1	5.156	0.7874	0.33
R0	1.191	3.9675	1.5875	0.1
R1	1.397	4.7625	2.7788	1.984	0.1	5.944	0.7874	0.584
R1-4	1.984	6.35	3.5712	2.38	0.1	7.518	0.7874 0.7874	0.584
R1-5	2.38	7.9375	3.5712	2.7788	0.08	9.119		0.584
R2-5	3.175	7.9375	3.5712	2.7788	0.08	9.119	0.7874	0.584
R2-6	3.175	9.525	3.5712	2.7788	0.13	10.719	0.7874	0.584
R2	3.175	9.525	3.9675	3.9675	0.3	11.176	0.762	0.762
R2A	3.175	12.7	4.3663	4.3663	0.3
R3	4.7625	12.7	4.9784	3.9675	0.3	14.351	1.0668	1.0668
R3A	4.7625	15.875	4.9784	4.9784	0.3	17.526	1.0668
R4	6.35	15.875	4.9784	4.9784	0.3	17.526	1.0668	1.0668
R4-11	6.35	17.4625	7.9197		0.3
R4A	6.35	19.05	7.1425	5.5575	0.4	17.526	1.0668
R5A	7.9375	22.225	7.1425		0.4
R6	9.525	22.225	7.1425	5.5575	0.4	24.613	1.575	1.575
R6A	9.525	22.225	5.5575		0.4
R8-7	11.113	28.575	7.9375	6.35	0.4	31.115	1.575	1.575
R8	12.7	28.575	6.35	0.4
R10	15.875	34.925	8.7325	7.142	0.6
R12	19.05	41.275	11.112	7.9375	0.6
R14	22.225	47.625	12.7	9.525	0.6
R16	25.4	50.8	12.7	9.525	0.6
R18	28.575	53.975	12.7	9.525	0.6
R20	31.75	57.15	12.7	9.525	1
R22	34.925	63.5	14.288	11.112	1
R24	38.1	66.675	14.288	11.112	1
R133	2.38	4.7625	2.38	1.5875	0.1	5.9436	0.7874	0.457
R144	3.175	6.35	2.7788	2.38	0.1	7.518	0.7874	0.5842
R155	3.9675	7.9375	3.175	2.7788	0.1	9.119	0.9144	0.5842
R156	4.7625	7.9375	3.175	2.7788	0.1	9.119	0.9144	0.5842
R164	3.175	9.525	2.38	2.38
R166	4.7625	9.525	3.175	3.175	0.1	10.719	0.7874	0.5842
R168	6.35	9.525	3.175	3.175	0.1	10.719	0.9144	0.5842
R174	3.175	10.414	2.7788	2.7788
R184	3.175	12.7	2.7788	2.7788
R186	4.7625	12.7	3.9675	2.7788
R188	6.35	12.7	4.7625	3.175	0.13	13.894	1.143	0.5842
R1038	9.525	15.875	3.9675	3.9675	0.15	13.894	0.7874	0.7874
R1204	3.175	19.05		3.175
R1212	12.7	19.05	3.9675		0.14
R1810	7.9375	12.7	3.9675	3.9675	0.13
RLS series
Bearing No.	d	D	B
RLS4	12.7	33.34	9.525
RLS5	15.875	39.69	11.11
RLS6	19.05	47.63	14.29
RLS7	22.225	50.8	14.29
RLS8	25.4	57.15	15.88
RLS9	28.575	63.5	15.88
RLS10	31.75	69.85	17.46
RLS11	34.925	76.2	17.46
RLS12	38.1	82.55	19.05
RLS13	41.275	88.9	19.05
RLS14	44.45	95.25	20.64
RLS15	47.625	101.6	20.64
RLS16	50.8	101.6	20.64
RLS18	57.15	114.3	22.23
RLS20	63.5	127	23.81
RLS22	69.85	133.4	23.81
RLS24	76.2	146.05	26.99
RLS26	82.55	152.4	26.99
RMS series
RMS4	12.7	41.28	15.88
RMS5	15.875	46.04	15.88
RMS6	19.05	50.8	17.46
RMS7	22.225	57.15	17.46
RMS8	25.4	63.5	19.05
RMS9	28.575	71.44	20.64
RMS10	31.75	79.37	22.23
RMS11	34.925	88.9	22.23
RMS12	38.1	95.25	23.81
RMS13	41.275	101.6	23.81
RMS14	44.45	108	26.99
RMS15	47.625	114.3	26.99
RMS16	50.8	114.3	26.99
RMS18	57.15	127	31.75
RMS20	63.5	139.7	31.75
RMS22	69.85	158.8	34.93
RMS24	76.2	177.8	39.68
RMS26	82.55	190.5	39.68
1600 series
Bearing No.	d	D	B	rmin
1601	4.762	17.462	6.35	0.4
1602	6.35	17.462	6.35	0.4
1603	7.938	22.225	7.142	0.5
1604	9.525	22.225	7.142	0.5
1605	7.938	23.017	7.938	0.5
1606	9.525	23.017	7.938	0.5
1607	11.112	23.017	7.938	0.5
1614	9.525	28.575	9.525	0.6
1615	11.112	28.575	9.525	0.6
1616	12.7	28.575	9.525	0.6
1620	11.112	34.925	11.112	0.3
1621	12.7	34.925	11.112	0.3
1622	14.288	34.925	11.112	0.3
1623	15.875	34.925	11.112	0.3
1628	15.875	41.275	12.7	0.6
1630	19.05	41.275	12.7	0.6
1633	15.875	44.45	12.7	0.6
1635	19.05	44.45	12.7	0.6
1638	19.05	50.8	14.288	0.6
1639	20.638	50.8	14.288	0.6
1640	22.225	50.8	14.288	0.6
1641	25.4	50.8	14.288	0.6
1652	28.575	63.5	15.875	1
1654	31.75	63.5	15.875	1
1657	31.75	65.088	17.462	1
1658	33.338	65.088	17.462	1
,
Non-standard ball bearings
Bearing Number			Dimensions			Basic load ratings
			(mm)			(KN)
			d	D	B	Cor	Cor
						Dyn.	Stat.
	6201-8 ZZ	6201-8 2RS	12.7	32	10	6180	3060
6201-13	6201-13 ZZ	6201-13 2RS	13	32	10	6180	3060
	6202-8 ZZ	6202-8 2RS	12.7	35	11	7450	3700
6202-13	6202-13 ZZ	6202-13 2RS	13	35	11	7450	3700
6202-14	6202-14 ZZ	6202-14 2RS	14	35	11	7450	3700
	6202-10 ZZ	6202-10 2RS	15.875	35	11	7450	3700
6202-16	6202-16 ZZ	6202-16 2RS	16	35	11	7450	3700
	6203-8 ZZ	6203-8 2RS	12.7	40	12	9560	4780
6203-13	6203-13 ZZ	6203-13 2RS	13	40	12	9560	4780
6203-15	6203-15 ZZ	6203-15 2RS	15	40	12	9560	4780
	6203-10 ZZ	6203-10 2RS	15.875	40	12	9560	4780
6203-16	6203-16 ZZ	6203-16 2RS	16	40	12	9560	4780
	6203-12 ZZ	6203-12 2RS	19.05	40	12	9560	4780
6204/3/4	6204-3/4 ZZ	6204-3/4 2RS	19.04	47	14	9777	6177
6204/7/8	6204-7/8 ZZ	6204-7/8 2RS	22.225	47	14	9777	6177
	6205-1 ZZ	6205-1 2RS	25.4	52	15	10666	6933
98205			25	52	9
98206			30	62	10
98305			25	62	12
99502H			15.875	34.925	11
Bearing No.			d	D	B	C	Bi	rmin
8000	87000	88000
8011	87011	88500	11	32	12.7	10	15.4	0.6
8013	87013	88013	13	32	12.7	10	15.4	0.6
8014	87014	88014	14	35	12.7	11	14.399	0.6
8016	87016	88016	16	35	12.7	11	14.399	0.6
8026	87026	88026	26	52	15.875	15	16.749	1
8500	87500	88500	10	30	12.7	9	16.041	0.6
8501	87501	88501	12	32	12.7	10	15.4	0.6
8502	87502	88502	15	35	12.7	11	14.399	0.6
8503	87503	88503	17	40	14.288	12	16.601	0.6
8504	87504	88504	20	47	15.875	14	17.75	1
8505	87505	88505	25	52	15.875	15	16.749	1
8506	87506	88506	30	62	20	16	24	1
8507	87507	88507	35	72	21	17	25	1
8508	87508	88508	40	80	24	21	27	1
8509	87509	88509	45	85	24	21	27	1
8510	87510	88510	50	90	26	22	30	1
8511	87511	88511	55	100	27	23	31	1.5
8602	87602	88602	15	42	15	13	17	1
8603	87603	88603	17	47	16	14	18	1
8604	87604	88604	20	52	19	15	23	1
8605	87605	88605	25	6, 2	21	17	25	1
8606	87606	88606	30	72	23	19	27	1
8607	87607	88607	35	80	25	21	29	1.5
8608	87608	88608	40	90	27	23	31	1.5
8609	87609	88609	45	100	30	25	36	1.5
